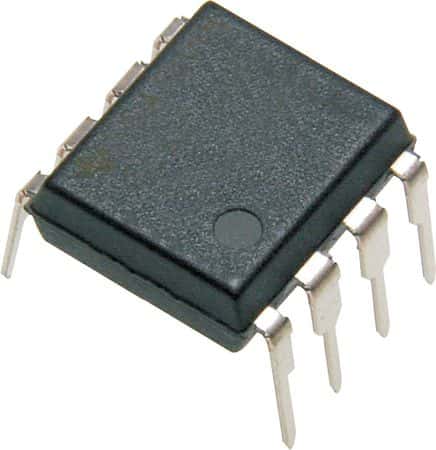

General purpose, logic IC output optocoupler featuring 5kV isolation voltage and 10Mbps data rate. This unidirectional, through-hole component offers a 1-element, widebody DIP-8 package with 7V collector-emitter breakdown voltage. Designed for a 4.5V to 5.5V supply voltage, it operates from -40°C to 85°C with a maximum power dissipation of 85mW. Key specifications include 15mA input current, 50mA output current, and propagation delay of 100ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCNW137-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Baud Rate | 10Mbaud |
| Package/Case | DIP |
| Collector Emitter Breakdown Voltage | 7V |
| Data Rate | 10Mbps |
| Direction | Unidirectional |
| Fall Time | 10ns |
| Forward Current | 20mA |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Input Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 85mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Output Voltage | 7V |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Power Dissipation | 85mW |
| Propagation Delay | 100ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 3V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 75ns |
| Width | 9.65mm |
| RoHS | Compliant |
