BROADCOM

HCPL-0534-000E

Datasheet

2-Ch Optocoupler, 3.75kV Isolation, SOIC, DC Input, 8mA Output

Broadcom

HCPL-0534-000E

Name: HCPL-0534-000E Broadcom
Brand: Broadcom
SKU: HCPL-0534-000E

2-Ch Optocoupler, 3.75kV Isolation, SOIC, DC Input, 8mA Output

General purpose logic IC output optocoupler featuring 2 channels and 2 elements, providing 3.75kV isolation. This surface mount device operates with a 25mA forward current and 16mA input current, delivering an 8mA output current per channel. Key specifications include a 20V collector-emitter breakdown voltage and a 50% current transfer ratio. Designed for a wide operating temperature range of -55°C to 100°C, it is RoHS compliant and UL, CSA, VDE approved.

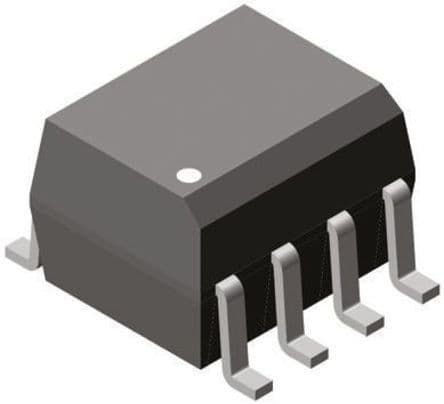

PackageSOIC

MountingSurface Mount

Power45mW

Quick Jump:

Technical Specifications

Broadcom HCPL-0534-000E technical specifications.

General

Approvals	UL, CSA, VDE
Package/Case	SOIC
Collector Emitter Breakdown Voltage	20V
Current Transfer Ratio	50%
Forward Current	25mA
Input Current	16mA
Input Type	DC
Isolation Voltage	3.75kV
Lead Free	Lead Free
Max Collector Current	8mA
Max Input Current	25mA
Max Operating Temperature	100°C
Min Operating Temperature	-55°C
Max Output Voltage	20V
Max Power Dissipation	45mW
Mount	Surface Mount
Number of Channels	2
Number of Elements	2
Output Current per Channel	8mA
Package Quantity	100
Packaging	Rail/Tube
Power Dissipation	45mW
Power Supply	30V
Propagation Delay	0.2us
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	5V
RoHS Compliant	Yes
Turn-On Delay Time	0.2us
