General purpose optocoupler featuring 2 channels and 2 elements, providing 3750V isolation. This surface mount SOIC-8 packaged component offers a 15Mbps data rate with a propagation delay of 90ns. It operates with a 15mA forward and input current, delivering up to 50mA output current per channel. Designed for unidirectional signal transfer, it boasts a 7V collector-emitter breakdown voltage and operates within a -40°C to 85°C temperature range.
PackageSOIC
MountingSurface Mount
Power60mW
Quick Jump:
Technical Specifications
Broadcom HCPL-063L-000E technical specifications.
General
Approvals
UL
Package/Case
SOIC
Collector Emitter Breakdown Voltage
7V
Data Rate
15Mbps
Direction
Unidirectional
Fall Time
20ns
Forward Current
15mA
Input Current
15mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Input Current
15mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Power Dissipation
60mW
Mount
Surface Mount
Number of Channels
2
Number of Elements
2
Output Current
50mA
Output Current per Channel
50mA
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
60mW
Propagation Delay
90ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
90ns
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-063L-000E Datasheet
Download the complete datasheet for Broadcom HCPL-063L-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

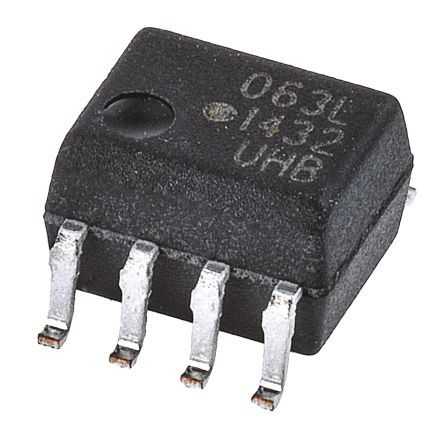

Product Images
