High-speed, unidirectional logic output optocoupler featuring a push-pull output stage. This 1-channel buffer-in device offers a 12.5Mbps data rate with a 40ns propagation delay and 8ns fall time. It provides 3.75kV isolation voltage and operates within a -40°C to 100°C temperature range. The surface-mount SOIC package is supplied on tape and reel.
PackageSOIC
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Broadcom HCPL-0710-500E technical specifications.
General
Package/Case
SOIC
Data Rate
12.5Mbps
Direction
Unidirectional
Fall Time
8ns
Forward Current
10mA
Input Current
10mA
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
10mA
Output Current per Channel
10mA
Output Type
PUSH-PULL
Output Voltage
6.5V
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
150mW
Propagation Delay
40ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
40ns
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-0710-500E Datasheet
Download the complete datasheet for Broadcom HCPL-0710-500E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

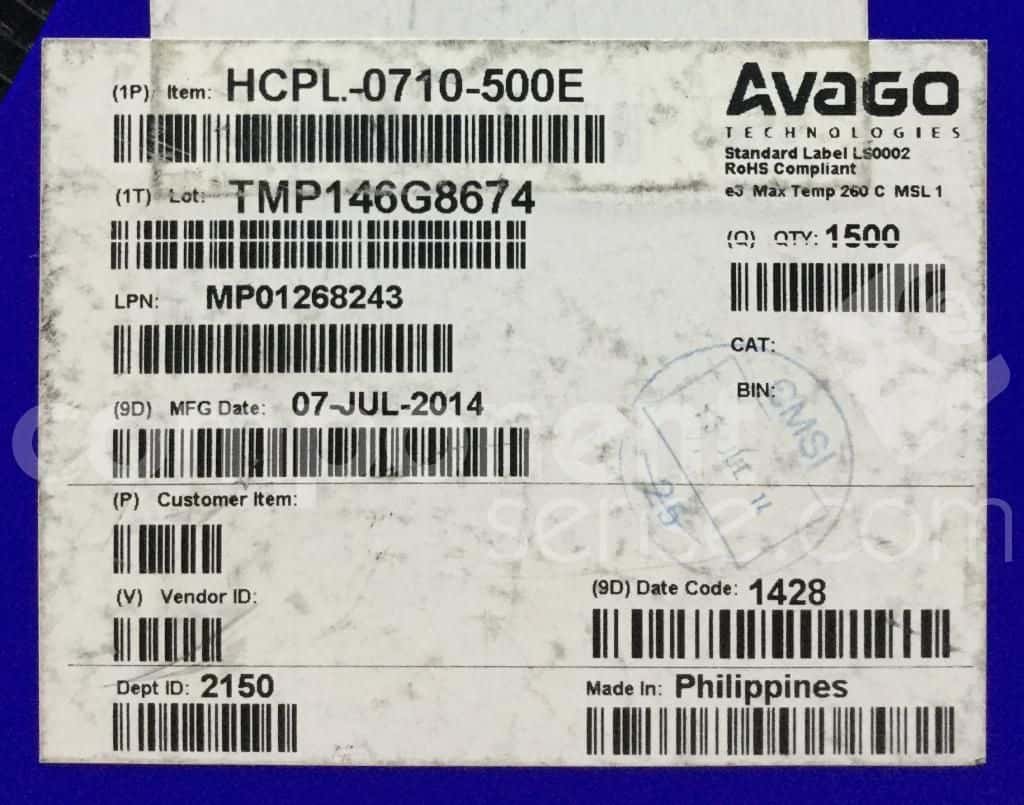

Product Images
