General purpose optocoupler featuring 3.75kV isolation voltage and 5Mbps data rate. This unidirectional, single-channel component offers a totem pole output type and 20V collector-emitter breakdown voltage. Designed for through-hole mounting in a DIP package, it operates from -40°C to 85°C and is RoHS compliant. Key specifications include 5mA input current, 25mA maximum output current, and 300ns propagation delay.
PackageDIP
MountingThrough Hole
Power210mW
Quick Jump:
Technical Specifications
Broadcom HCPL-2211-000E technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
DIP
Collector Emitter Breakdown Voltage
20V
Data Rate
5Mbps
Direction
Unidirectional
Fall Time
7ns
Forward Current
10mA
Input Current
5mA
Input Type
DC
Isolation Voltage
3.75kV
Isolation Voltage-Max
3.75kV
Lead Free
Lead Free
Max Input Current
25mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
25mA
Max Output Voltage
20V
Max Power Dissipation
210mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current
25mA
Output Current per Channel
25mA
Output Type
TOTEM POLE
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
210mW
Propagation Delay
300ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
300ns
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-2211-000E Datasheet
Download the complete datasheet for Broadcom HCPL-2211-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

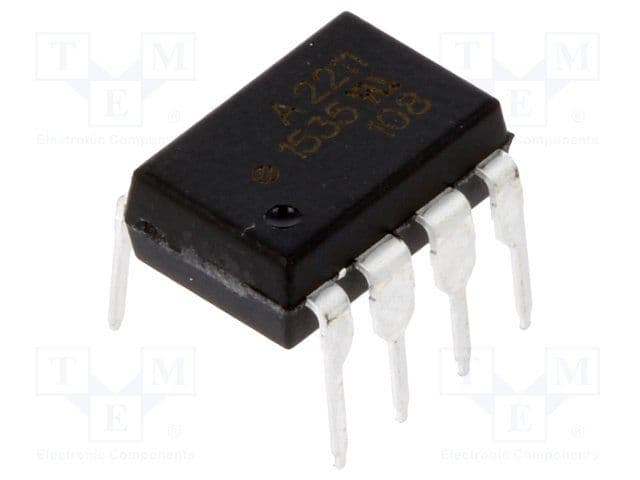

Product Images
