General purpose optocoupler featuring 1-element, unidirectional signal transmission with a 15Mbps data rate. Offers 3.75kV isolation voltage and a 50mA output current. Designed for surface mount applications with a DIP-8 package. Operates across a -40°C to 85°C temperature range.
PackageSMD/SMT
MountingSurface Mount
Power85mW
Quick Jump:
Technical Specifications
Broadcom HCPL-260L-300E technical specifications.
General
| Package/Case | SMD/SMT |
| Data Rate | 15Mbps |
| Direction | Unidirectional |
| Fall Time | 20ns |
| Forward Current | 20mA |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Max Input Current | 15mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 85mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 50mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 85mW |
| Propagation Delay | 90ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 90ns |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HCPL-260L-300E Datasheet
Download the complete datasheet for Broadcom HCPL-260L-300E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

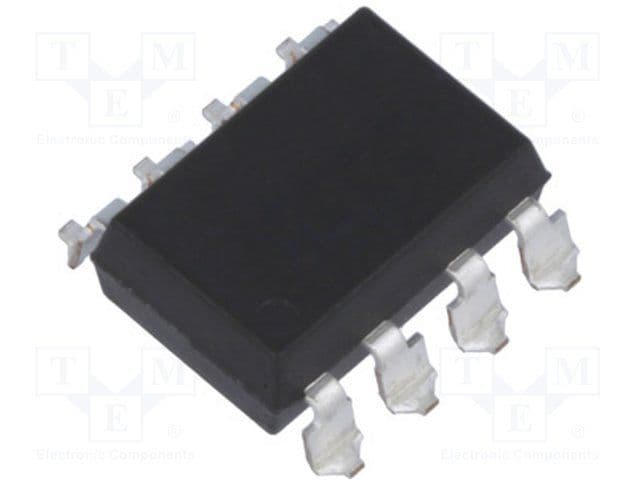

Product Images
