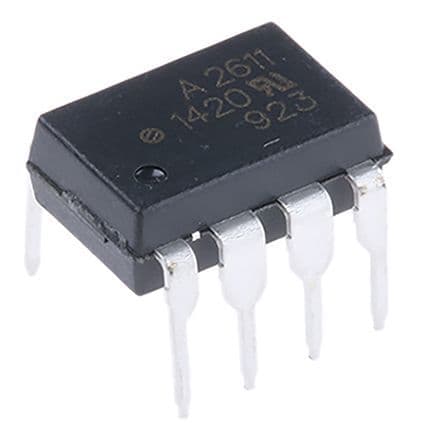

High-speed logic output optocoupler featuring a unidirectional DC input and an open-collector output. This 1-channel device offers a 10Mbps data rate and a 3.75kV isolation voltage, with a 7V collector-emitter breakdown voltage. Designed for through-hole mounting in an 8-pin DIP package, it operates within a -40°C to 85°C temperature range and supports a 20mA forward current. Key specifications include a 10ns fall time, 75ns turn-on delay, and 100ns propagation delay, with a maximum output current of 50mA. This RoHS compliant component is available in tube packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCPL-2611-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, VDE |
| Package/Case | DIP |
| Collector Emitter Breakdown Voltage | 7V |
| Data Rate | 10Mbps |
| Direction | Unidirectional |
| Fall Time | 10ns |
| Forward Current | 20mA |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Max Input Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 85mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 85mW |
| Propagation Delay | 100ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 75ns |
| DC Rated Voltage | 1V |
| RoHS | Compliant |
