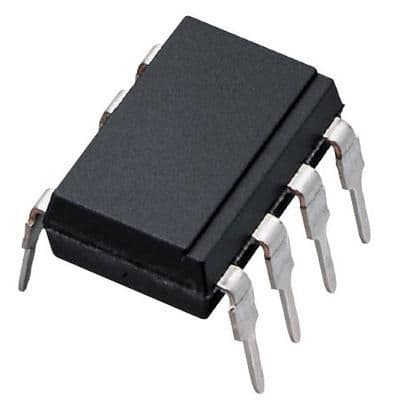

General purpose optocoupler featuring 2 channels and 2 elements in a DIP package for through-hole mounting. Achieves 3.75kV isolation voltage with a 10Mbps data rate and 75ns turn-on delay. Delivers 50mA output current per channel with a 10ns fall time and 100ns propagation delay. Operates across a -40°C to 85°C temperature range with 60mW maximum power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCPL-2630 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom HCPL-2630 technical specifications.
| Package/Case | DIP |
| Data Rate | 10Mbps |
| Fall Time | 10ns |
| Forward Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50mA |
| Max Power Dissipation | 60mW |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 50mA |
| Output Current per Channel | 50mA |
| Output Voltage | 7V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 60mW |
| Propagation Delay | 100ns |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | No |
| Turn-On Delay Time | 75ns |
| RoHS | Not CompliantNo |
