Logic IC output optocoupler featuring 3.75kV isolation and a unidirectional, 1-element design. This through-hole component offers a push-pull output type with a high and low output current of 2A, and a maximum output current of 2.5A. Operating within a -40°C to 100°C temperature range, it boasts a 16mA forward current and a 25mA input current, with a propagation delay of 500ns. Approvals include UL, CSA, and IEC, and the component is RoHS compliant.
PackageDIP
MountingThrough Hole
Power295mW
Quick Jump:
Technical Specifications
Broadcom HCPL-3120-000E technical specifications.
General
Approvals
UL, CSA, IEC
Package/Case
DIP
Direction
Unidirectional
Fall Time
0.1us
Forward Current
25mA
High Level Output Current
2A
Input Current
16mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Low Level Output Current
2A
Max Input Current
16mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Power Dissipation
295mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Type
PUSH-PULL
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
295mW
Propagation Delay
500ns
Pulse Width Distortion (PWD)
300ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
500ns
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-3120-000E Datasheet
Download the complete datasheet for Broadcom HCPL-3120-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

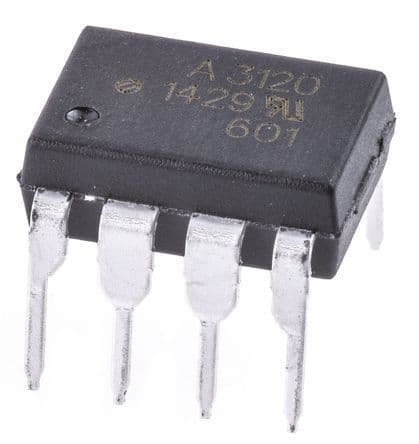

Product Images
