Surface mount logic IC output optocoupler featuring 1-element, unidirectional signal transmission with a 3.75kV isolation voltage. This push-pull output device offers a high output current of 2A, a forward current of 25mA, and a maximum power dissipation of 295mW. Operating across a temperature range of -40°C to 100°C, it boasts a propagation delay of 500ns and is RoHS compliant. Approvals include CSA, UR, IEC, and EN.
PackageSMD/SMT
MountingSurface Mount
Power295mW
Quick Jump:
Technical Specifications
Broadcom HCPL-3120-360E technical specifications.
General
Approvals
CSA, UR, IEC, EN
Package/Case
SMD/SMT
Direction
Unidirectional
Fall Time
0.1us
Forward Current
25mA
High Level Output Current
2A
Input Current
16mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Low Level Output Current
2A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
2.5A
Max Power Dissipation
295mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Type
PUSH-PULL
Output Voltage
30V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
295mW
Propagation Delay
500ns
Pulse Width Distortion (PWD)
300ns
Radiation Hardening
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
500ns
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-3120-360E Datasheet
Download the complete datasheet for Broadcom HCPL-3120-360E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

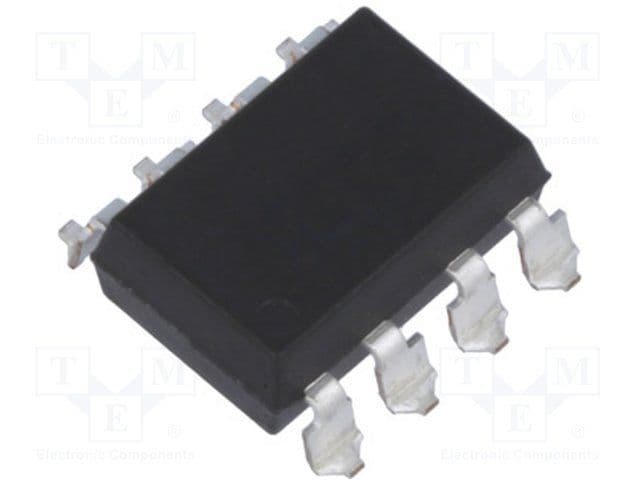

Product Images
