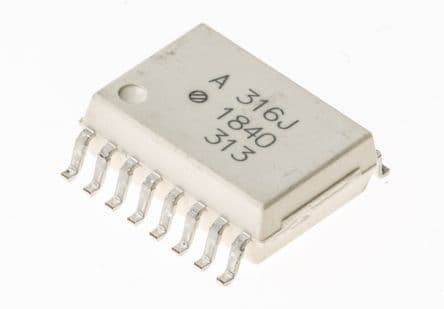

General purpose optocoupler with a 2-channel, unidirectional gate driver output. Features a 3.75kV isolation voltage and a 2A high/low level output current, with a maximum output current of 2.5A and a maximum output voltage of 35V. Operates from a 5V supply voltage with a maximum supply voltage of 30V. Packaged in a 16-pin SOIC surface mount case, it offers a 500ns propagation delay and 100ns fall time. Approvals include UL, CSA, VDE, IEC, and EN, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCPL-316J-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom HCPL-316J-000E technical specifications.
| Approvals | UL, CSA, VDE, IEC, EN |
| Package/Case | SOIC |
| Direction | Unidirectional |
| Fall Time | 100ns |
| High Level Output Current | 2A |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Low Level Output Current | 2A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.5A |
| Max Output Voltage | 35V |
| Max Power Dissipation | 1.2W |
| Max Supply Voltage | 30V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 2 |
| Operating Supply Voltage | 5V |
| Output Type | TOTEM POLE |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Propagation Delay | 500ns |
| Pulse Width Distortion (PWD) | 300ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 500ns |
| RoHS | Compliant |
Download the complete datasheet for Broadcom HCPL-316J-000E to view detailed technical specifications.
