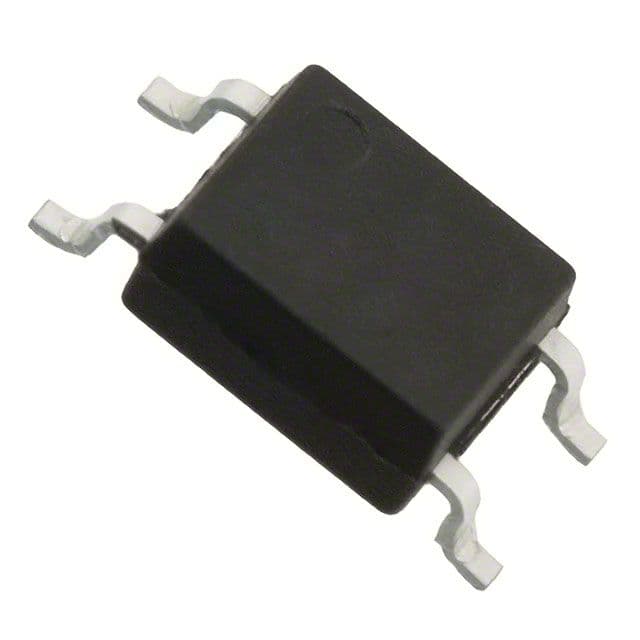

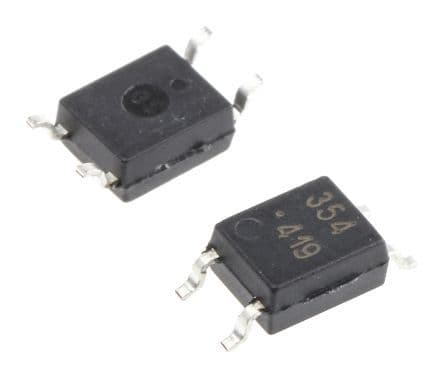

AC input-transistor output optocoupler featuring 3.75kV isolation and a 1-element, 1-channel configuration. Surface mountable in a MINIFLAT SOP-4 package, this component offers a 35V collector-emitter breakdown voltage and a maximum collector current of 50mA. It operates across a temperature range of -55°C to 100°C with a 400% current transfer ratio and 170mW power dissipation. Approvals include UL, CSA, and VDE.
PackageSMD/SMT
MountingSurface Mount
Power170mW
Quick Jump:
Technical Specifications
Broadcom HCPL-354-000E technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
35V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
400%
Fall Time
18000ns
Forward Current
50mA
Input Type
AC
Isolation Voltage
3.75kV
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
35V
Max Power Dissipation
170mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
170mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
