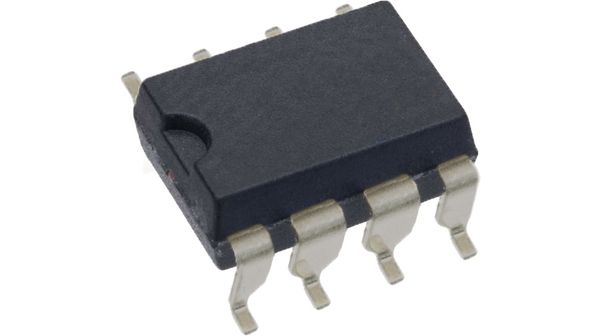

General purpose optocoupler featuring 1 channel and 8-pin SMD/SMT package. Offers 3.75kV isolation voltage with a 2.54mm lead pitch. Supports AC/DC input with a 4Kbps data rate and 30mA maximum output current. Operates within a 0°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCPL-3700-300E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom HCPL-3700-300E technical specifications.
| Package/Case | SMD/SMT |
| Data Rate | 4Kbps |
| Fall Time | 0.3us |
| Forward Current | 50mA |
| Input Current | 3.7mA |
| Input Type | AC/DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Max Collector Current | 30mA |
| Max Frequency | 4kHz |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 30mA |
| Max Output Voltage | 20V |
| Max Power Dissipation | 305mW |
| Max Supply Voltage (DC) | 18V |
| Min Supply Voltage (DC) | 2V |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Output Voltage | 20V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 305mW |
| Propagation Delay | 40000ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 7.62mm |
| Test Voltage | 3kV |
| Width | 9.65mm |
| RoHS | Compliant |
