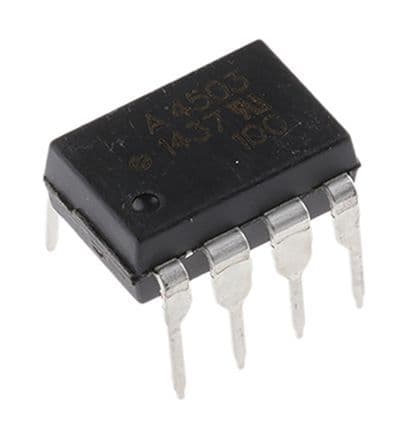

General purpose optocoupler featuring a logic IC output, 1-element configuration, and 3750V isolation. Operates at up to 1MBps with a 2µs propagation delay. This through-hole component offers a 50% current transfer ratio, 16mA input current, and 8mA maximum output current per channel. Designed for a 30V power supply, it boasts a 20V collector-emitter breakdown voltage and operates across a -55°C to 100°C temperature range. UL approved and RoHS compliant, it is supplied in a PDIP package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCPL-4503-000E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Package/Case | PDIP |
| Collector Emitter Breakdown Voltage | 20V |
| Current Transfer Ratio | 50% |
| Forward Current | 25mA |
| Input Current | 16mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Max Collector Current | 8mA |
| Max Input Current | 25mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 8mA |
| Max Output Voltage | 20V |
| Max Power Dissipation | 100mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 8mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 100mW |
| Power Supply | 30V |
| Propagation Delay | 2us |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 5V |
| RoHS Compliant | Yes |
| RoHS | Compliant |
