HCPL-4504-000E

Datasheet

1-Ch DC Optocoupler, 3.75kV Isolation, 8mA Output, PDIP-8

Broadcom

HCPL-4504-000E

Name: HCPL-4504-000E Broadcom
Brand: Broadcom
SKU: HCPL-4504-000E

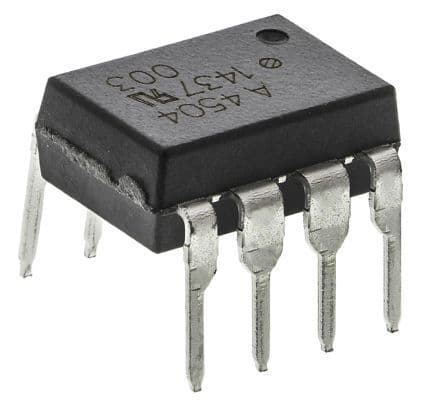

1-Ch DC Optocoupler, 3.75kV Isolation, 8mA Output, PDIP-8

General purpose optocoupler featuring 3.75kV isolation voltage and a PDIP package. This single-channel device offers a 65% current transfer ratio with a 16mA input current and 25mA maximum input current. It provides 8mA maximum output current and 20V collector-emitter breakdown voltage, operating within a -55°C to 100°C temperature range. Through-hole mounting and 0.5µs propagation delay are key specifications.

PackagePDIP

MountingThrough Hole

Power100mW

Quick Jump:

Chat with Datasheet

Technical Specifications

Broadcom HCPL-4504-000E technical specifications.

General

Approvals	UL
Package/Case	PDIP
Collector Emitter Breakdown Voltage	20V
Current Transfer Ratio	65%
Forward Current	25mA
Input Current	16mA
Input Type	DC
Isolation Voltage	3.75kV
Lead Free	Lead Free
Max Collector Current	8mA
Max Input Current	25mA
Max Operating Temperature	100°C
Min Operating Temperature	-55°C
Max Output Current	8mA
Max Output Voltage	20V
Max Power Dissipation	100mW
Mount	Through Hole
Number of Channels	1
Number of Elements	1
Output Current per Channel	8mA
Package Quantity	50
Packaging	Rail/Tube
Power Dissipation	100mW
Power Supply	30V
Propagation Delay	0.5us
Radiation Hardening	No
Reach SVHC Compliant	No
Reverse Breakdown Voltage	5V
RoHS Compliant	Yes
Turn-On Delay Time	0.5us
Width	9.65mm
