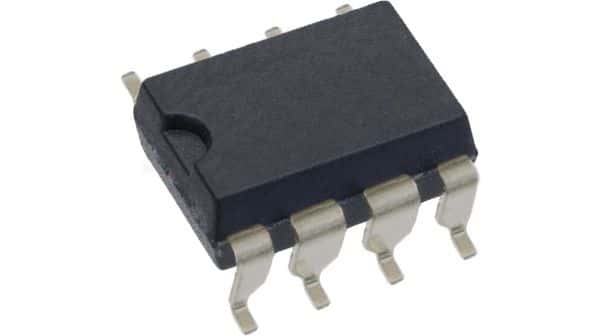

Surface mount logic IC output optocoupler, featuring 1 channel and 1 element for unidirectional signal transfer. Offers 3.75kV isolation voltage with a 25Mbps data rate and 40ns propagation delay. Designed for reliable operation across a -40°C to 85°C temperature range, with a 5V output voltage and 10mA output current. Compliant with UL, CSA, and VDE approvals, this lead-free component is suitable for demanding applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCPL-7721-300E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, VDE |
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 5V |
| Data Rate | 25Mbps |
| Direction | Unidirectional |
| Fall Time | 8ns |
| Input Current | 10uA |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10mA |
| Max Output Voltage | 6.5V |
| Max Power Dissipation | 150mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 10mA |
| Output Current per Channel | 10mA |
| Output Type | PUSH-PULL |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 150mW |
| Propagation Delay | 40ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 7.62mm |
| Test Voltage | 1.181kV |
| Turn-On Delay Time | 40ns |
| Width | 9.65mm |
| RoHS | Compliant |
