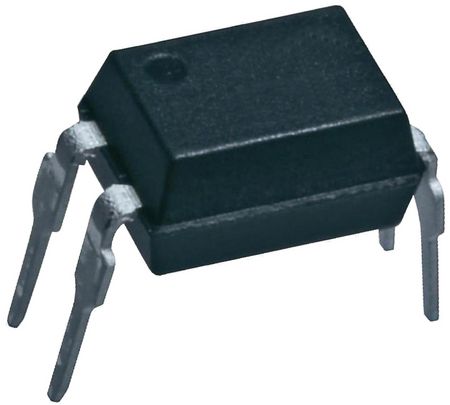

AC input-transistor output optocoupler featuring 5kV isolation voltage and a 1-element DIP-4 package. Offers a 35V collector-emitter breakdown voltage and 200mV collector-emitter saturation voltage. Supports a 20mA input current and 50mA maximum output current per channel, with a 300% current transfer ratio. Operates within a -30°C to 100°C temperature range and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Broadcom HCPL-814-000E technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
PDIP
Collector Emitter Breakdown Voltage
35V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
300%
Fall Time
18000ns
Forward Current
50mA
Input Current
20mA
Input Type
AC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Output Voltage
35V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
35V
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-814-000E Datasheet
Download the complete datasheet for Broadcom HCPL-814-000E to view detailed technical specifications.
