HCPL-817-36CE
Transistor Output Optocoupler, 1-Element, 5000V Isolation, 0.300 INCH, ROHS COMPLIANT, COMPACT, SMD, DIP-4
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom HCPL-817-36CE technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
200mV
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
400%
Input Current
20mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
100
Packaging
Rail/Tube
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-817-36CE Datasheet
Download the complete datasheet for Broadcom HCPL-817-36CE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

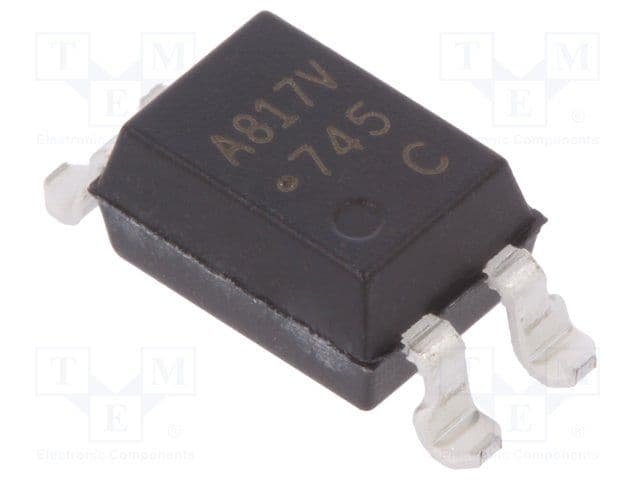

Product Images
