Surface mount transistor output optocoupler featuring 5kV isolation voltage and 1 channel. This component offers a 600% current transfer ratio, 50mA maximum collector current, and 35V collector-emitter voltage. Designed for general applications, it operates within a -30°C to 100°C temperature range and boasts UL, CSA, and VDE approvals. The device is supplied in tape and reel packaging.
PackageSMD/SMT
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Broadcom HCPL-817-50DE technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
600%
Fall Time
18000ns
Forward Current
50mA
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
50mA
Max Input Current
50mA
Max Operating Temperature
100°C
Min Operating Temperature
-30°C
Max Output Voltage
70V
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-817-50DE Datasheet
Download the complete datasheet for Broadcom HCPL-817-50DE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

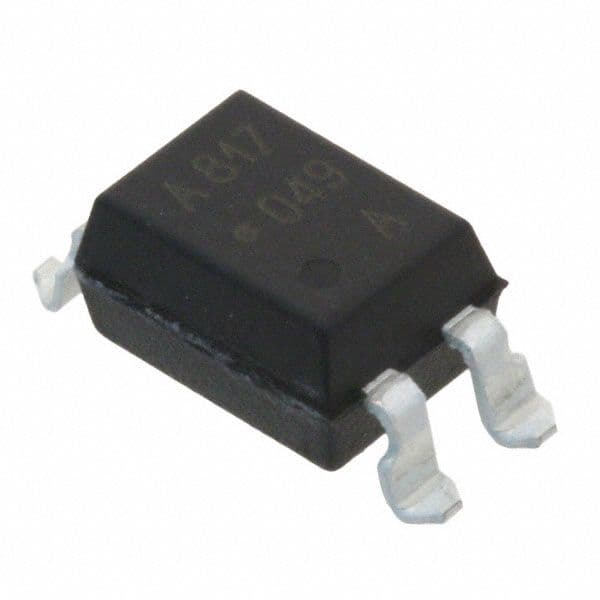

Product Images
