General purpose optocoupler featuring 3.75kV isolation voltage and a 10Mbps data rate. This unidirectional, single-channel device offers a 50mA output current and a 5.5V output voltage. Designed for surface mounting in a SOIC package, it operates within a temperature range of -40°C to 85°C. Key specifications include a 5mA input current, 20mA forward current, and 75ns propagation delay.
PackageSOIC
MountingSurface Mount
Power85mW
Quick Jump:
Technical Specifications
Broadcom HCPL-M600-500E technical specifications.
General
Package/Case
SOIC
Data Rate
10Mbps
Direction
Unidirectional
Fall Time
10ns
Forward Current
20mA
Input Current
5mA
Input Type
DC
Isolation Voltage
3.75kV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Power Dissipation
85mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current
50mA
Output Current per Channel
50mA
Output Voltage
5.5V
Package Quantity
1500
Packaging
Tape and Reel
Power Dissipation
85mW
Propagation Delay
75ns
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
RoHS Compliant
Yes
Turn-On Delay Time
75ns
Compliance
RoHS
Compliant
Datasheet
Broadcom HCPL-M600-500E Datasheet
Download the complete datasheet for Broadcom HCPL-M600-500E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

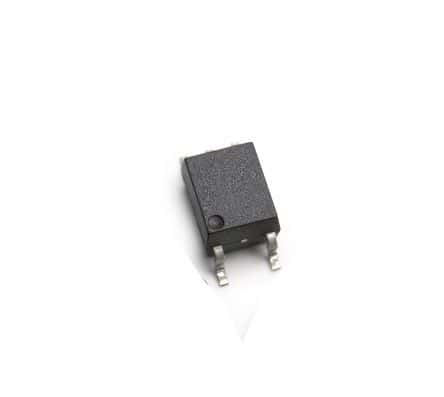

Product Images
