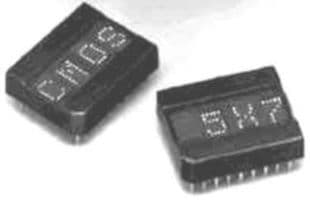

This DIP-18 LED display features 140 elements and operates within a temperature range of -40°C to 85°C. It is powered by a DC voltage of 5V and is designed for through-hole mounting. The display emits a red illumination color with a luminous intensity of 36.49mcd and a wavelength of 635nm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDLS-2416 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Color | Red |
| Depth | 20.07mm |
| Display Type | Dot Matrix |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 25.15mm |
| Luminous Intensity | 36.49mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Elements | 140 |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | HDLx-2416 |
| Viewing Area (height) | 5.08mm |
| Viewing Area Length | 3.43mm |
| DC Rated Voltage | 5V |
| Wavelength | 635nm |
| RoHS | Compliant |
