Red 1-character numeric LED display, 14.22mm viewing height, featuring 8 elements for segment display. This surface mount device operates with a 2V supply voltage and 20mA forward current, delivering 16mcd luminous intensity at 624nm wavelength. With a maximum power dissipation of 65mW, it functions across a -40°C to 105°C temperature range. Packaged in tape and reel, this RoHS compliant component is ideal for general indication applications.
PackageSMD/SMT
MountingSurface Mount
Power65mW
Quick Jump:
Technical Specifications
Broadcom HDSM-531C technical specifications.
General
Package/Case
SMD/SMT
Color
Red
Depth
19mm
Display Type
Segment
Forward Current
20mA
Height
0.669inch
Illumination Color
Red
Length
12.5mm
Luminous Intensity
16mcd
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
65mW
Mount
Surface Mount
Number of Characters
1
Number of Elements
8
Number of Positions
1
Operating Supply Voltage
2V
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
65mW
Reach SVHC Compliant
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Area (height)
14.22mm
Viewing Area Length
8.1mm
Wavelength
624nm
Width
0.492inch
Compliance
RoHS
Compliant
Datasheet
Broadcom HDSM-531C Datasheet
Download the complete datasheet for Broadcom HDSM-531C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

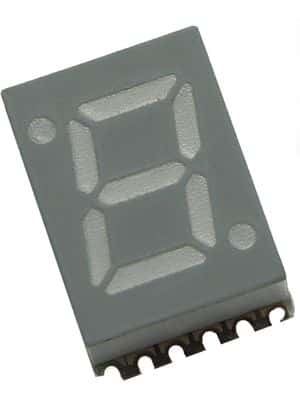

Product Images
