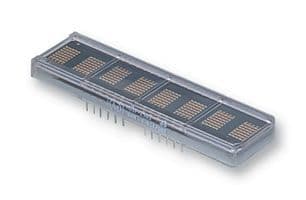

8-character, 5x7 dot matrix LED display featuring red illumination. This through-hole mount component operates with a 5V supply voltage and utilizes a parallel, 8-bit interface. It offers a viewing area height of 4.57mm and a wavelength of 637nm, with a forward current of 410mA and luminous intensity of 25mcd. The display is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HDSP-2534 technical specifications.
General
| Package/Case | DIP |
| Color | Red |
| Depth | 11.43mm |
| Display Type | Dot Matrix |
| Forward Current | 410mA |
| Illumination Color | Red |
| Interface | Parallel, 8 bit |
| Lead Free | Lead Free |
| Length | 42.93mm |
| Luminous Intensity | 25mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Elements | 280 |
| Operating Supply Voltage | 5V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HDSP-253x |
| Viewing Area (height) | 4.57mm |
| Viewing Area Length | 2.54mm |
| DC Rated Voltage | 5V |
| Wavelength | 637nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HDSP-2534 Datasheet
Download the complete datasheet for Broadcom HDSP-2534 to view detailed technical specifications.
