High-efficiency red 1-character numeric LED display, 20.32mm viewing height, 11.07mm character width. Features 7 segments and 8 elements, operating at a forward current of 100mA with a 2.6V supply voltage. DIP package with through-hole mounting, 626nm wavelength, and luminous intensity of 7mcd. Operating temperature range from -40°C to 100°C, with 105mW power dissipation.
PackageDIP
MountingThrough Hole
Power105mW
Quick Jump:
Technical Specifications
Broadcom HDSP-3900 technical specifications.
General
| Package/Case | DIP |
| Character Width | 11.07mm |
| Color | Red |
| Depth | 18.6mm |
| Display Type | Segment |
| Forward Current | 100mA |
| Height | 8.38mm |
| Illumination Color | Red |
| Length | 25mm |
| Luminous Intensity | 7mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 105mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Elements | 8 |
| Number of Segments | 7 |
| Operating Supply Voltage | 2.6V |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Power Consumption | 105mW |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 20.32mm |
| Viewing Area Length | 11.07mm |
| Wavelength | 626nm |
| Width | 19.96mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HDSP-3900 Datasheet
Download the complete datasheet for Broadcom HDSP-3900 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

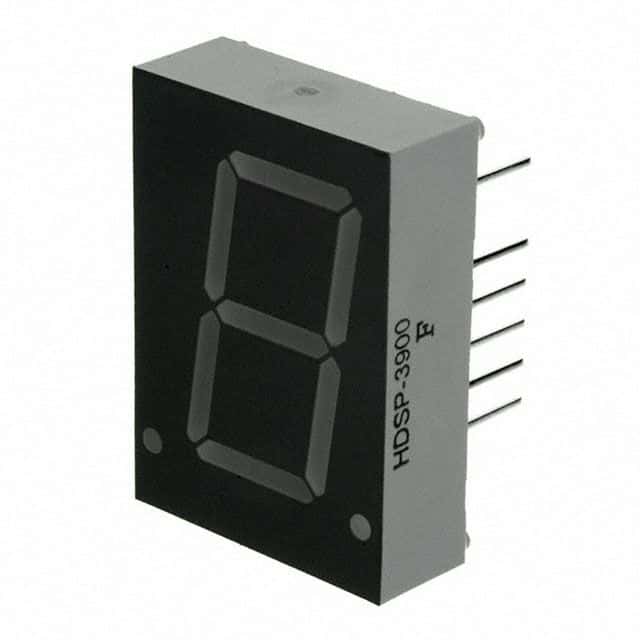

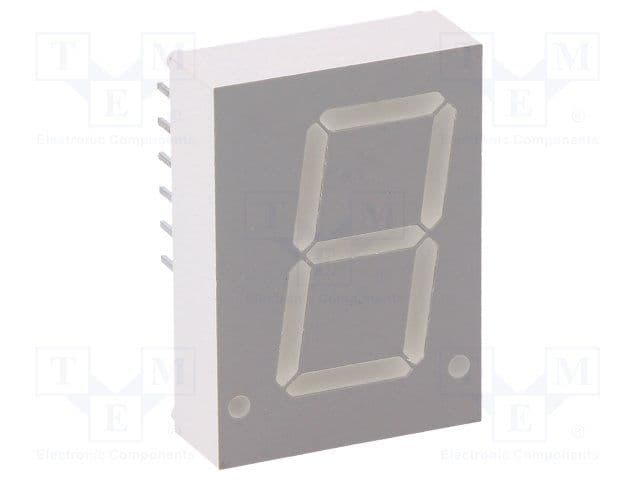

Product Images
