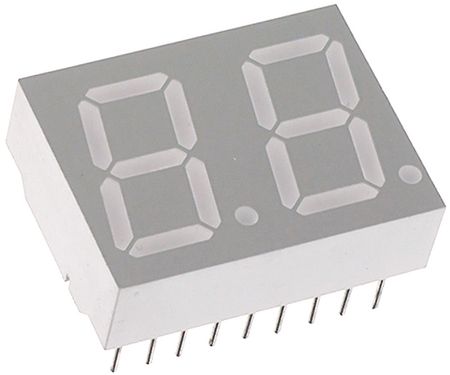

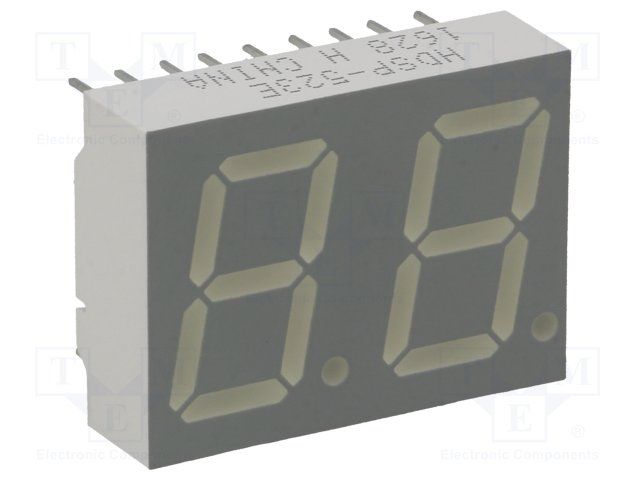

Red 2-digit segmented LED display module featuring 14 segments per digit and 16 total LED elements. This through-hole mount component offers a character width of 7.8mm and a viewing area height of 14.22mm. Operates with a forward current of 20mA and a typical forward voltage of 2.05V, delivering a luminous intensity of 4mcd. Designed for a wide operating temperature range of -35°C to 85°C, this RoHS compliant module is packaged in a 18-pin DIP format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDSP-523E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Character Width | 7.8mm |
| Color | Red |
| Depth | 18.6mm |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 8mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 25mm |
| Luminous Intensity | 4mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -35°C |
| Max Power Dissipation | 62.5mW |
| Mount | Through Hole |
| Number of Characters | 2 |
| Number of Elements | 16 |
| Number of Positions | 2 |
| Number of Segments | 14 |
| Operating Supply Voltage | 2.05V |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Power Consumption | 62.5mW |
| Power Dissipation | 62.5mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 14.22mm |
| Viewing Area Length | 7.8mm |
| Wavelength | 628nm |
| Width | 25mm |
| RoHS | Compliant |
