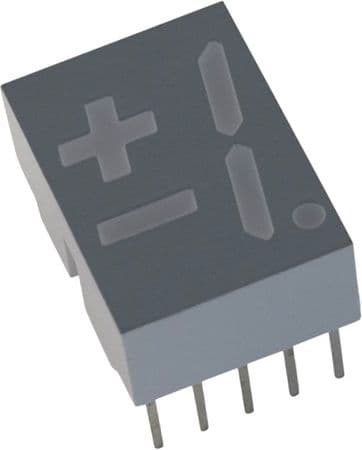

High-efficiency red 6-digit segmented LED display module with a 10-pin DIP package for through-hole mounting. Features a luminous intensity of 2.8mcd at a forward current of 20mA and an operating supply voltage of 2.1V. This module operates across a temperature range of -20°C to 100°C with a maximum power dissipation of 105mW. It boasts a wavelength of 626nm and a reverse voltage rating of 30V, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDSP-5507 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Color | Red |
| Depth | 17.02mm |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 0.67inch |
| Illumination Color | Red |
| Length | 12.57mm |
| Luminous Intensity | 2.8mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 105mW |
| Mount | Through Hole |
| Number of Elements | 6 |
| Number of Positions | 1 |
| Operating Supply Voltage | 2.1V |
| Package Quantity | 320 |
| Packaging | Rail/Tube |
| Power Consumption | 105mW |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 30V |
| RoHS Compliant | Yes |
| Wavelength | 626nm |
| Width | 0.495inch |
| RoHS | Compliant |
