Red 8-element, 7-segment LED display module with a 4.8mm character width. Features through-hole mounting in a DIP package, operating at a 2V supply voltage with a 20mA forward current. Delivers 1.1mcd luminous intensity at a 640nm wavelength. Designed for a wide operating temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole
Power50mW
Quick Jump:
Technical Specifications
Broadcom HDSP-C3E3 technical specifications.
General
| Package/Case | DIP |
| Character Width | 4.8mm |
| Color | Red |
| Depth | 7.5mm |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 0.335inch |
| Illumination Color | Red |
| Length | 0.551inch |
| Luminous Intensity | 1.1mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 57.5mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Elements | 8 |
| Number of Segments | 7 |
| Operating Supply Voltage | 2V |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Power Dissipation | 50mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 9.1mm |
| Wavelength | 640nm |
| Width | 0.295inch |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HDSP-C3E3 Datasheet
Download the complete datasheet for Broadcom HDSP-C3E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

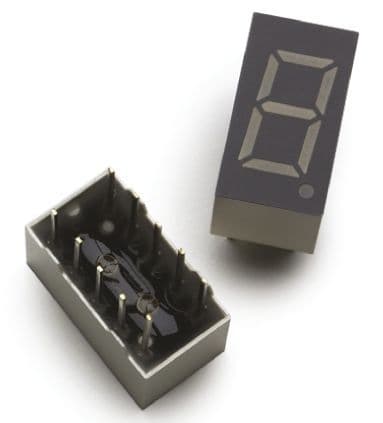

Product Images
