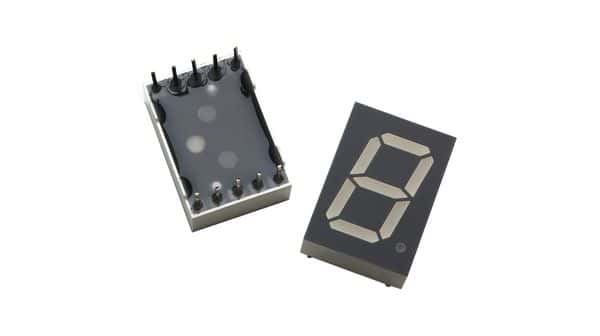

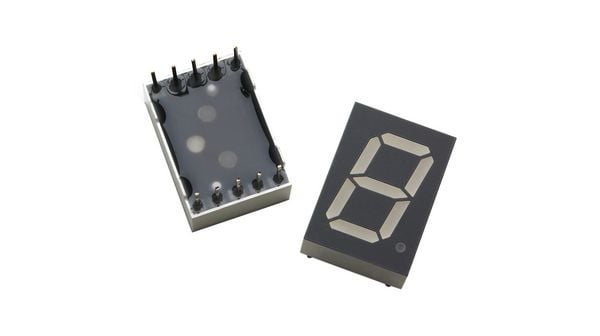

Red 1-character numeric LED display featuring a 13.1mm viewing area and 7-segment configuration. This through-hole mount component operates with a 20mA forward current, delivering 16mcd luminous intensity at a 626nm wavelength. Encased in a 10-pin DIP package, it offers a wide operating temperature range from -40°C to 85°C and a maximum power dissipation of 50mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDSP-C5A1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Character Width | 7.62mm |
| Color | Red |
| Depth | 17.6mm |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 0.693inch |
| Illumination Color | Red |
| Length | 12.4mm |
| Luminous Intensity | 16mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 50mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Elements | 8 |
| Number of Positions | 1 |
| Number of Segments | 7 |
| Package Quantity | 250 |
| Packaging | Rail/Tube |
| Power Consumption | 50mW |
| Power Dissipation | 50mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 13.1mm |
| Wavelength | 626nm |
| Width | 0.488inch |
| RoHS | Compliant |
