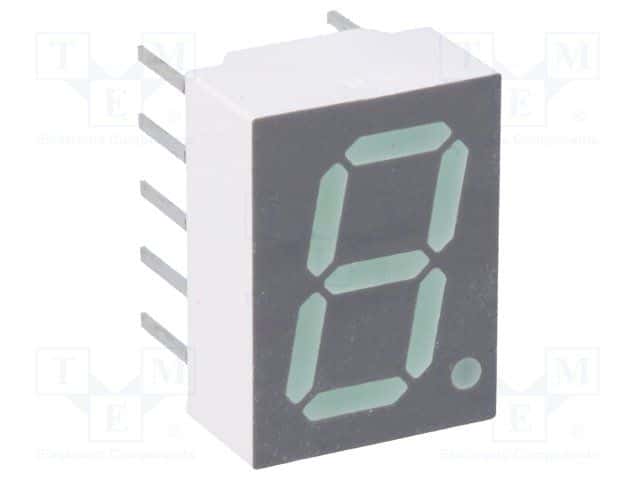

Green 7-segment numeric LED display, 10.16mm character height, featuring 8 elements per character. This through-hole mount component operates with a 2.1V forward voltage and 30mA forward current, delivering 3.5mcd luminous intensity at a 571nm wavelength. Encased in a DIP package with dimensions of 12.9mm length, 9.79mm depth, and 0.39-inch width, it supports a maximum power dissipation of 105mW and operates within a -40°C to 100°C temperature range. This lead-free, RoHS-compliant display is designed for general indication applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDSP-F503-JK000 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Color | Green |
| Depth | 9.79mm |
| Display Type | Segment |
| Forward Current | 30mA |
| Height | 0.25inch |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 12.9mm |
| Luminous Intensity | 3.5mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 105mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Elements | 8 |
| Operating Supply Voltage | 2.1V |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Power Consumption | 105mW |
| Power Dissipation | 105mW |
| Radiation Hardening | No |
| Reverse Voltage | 50V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 10.16mm |
| Viewing Area Length | 5.59mm |
| Wavelength | 571nm |
| Width | 0.39inch |
| RoHS | Compliant |
