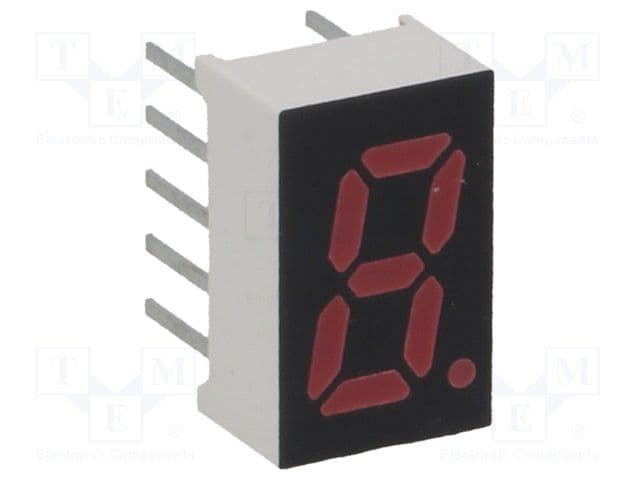

High-efficiency red, 1-character numeric LED display featuring a 7-segment configuration. This through-hole mount component offers a 4mm character width and an 8mm viewing area height. Operating with a 30mA forward current and 2V supply voltage, it provides a luminous intensity of 5.39mcd. The DIP package is RoHS compliant and designed for a wide operating temperature range of -20°C to 90°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDSP-U211 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Character Width | 4mm |
| Color | Red |
| Depth | 7.1mm |
| Display Type | Segment |
| Forward Current | 30mA |
| Height | 0.197inch |
| Illumination Color | Red |
| Length | 11mm |
| Luminous Intensity | 5.39mcd |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 105mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Elements | 8 |
| Number of Segments | 7 |
| Operating Supply Voltage | 2V |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Power Consumption | 105mW |
| Power Dissipation | 105mW |
| Radiation Hardening | No |
| Reverse Voltage | 30V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 8mm |
| Viewing Area Length | 4mm |
| Wavelength | 626nm |
| Width | 0.28inch |
| RoHS | Compliant |
