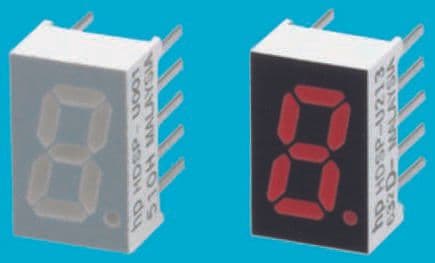

High efficiency red 7-segment numeric LED display, 1-character, 8mm viewing area height. Features a 4mm character width, 30mA forward current, and 5.39mcd luminous intensity. Through-hole mount DIP package, operating voltage of 2V, and a wavelength of 626nm. RoHS compliant and lead-free, with an operating temperature range of -20°C to 90°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDSP-U213 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Character Width | 4mm |
| Color | Red |
| Depth | 7.1mm |
| Display Type | Segment |
| Forward Current | 30mA |
| Height | 11mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 11mm |
| Luminous Intensity | 5.39mcd |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 105mW |
| Mount | Through Hole |
| Number of Characters | 1 |
| Number of Elements | 8 |
| Number of Segments | 7 |
| Operating Supply Voltage | 2V |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Power Dissipation | 105mW |
| Radiation Hardening | No |
| Reverse Voltage | 30V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 8mm |
| Viewing Area Length | 4mm |
| Wavelength | 626nm |
| Width | 7.1mm |
| RoHS | Compliant |
