PackageMetal
Current Rating5mA
MountingChassis Mount
Quick Jump:
Technical Specifications
Broadcom HEDS-5500#A02 technical specifications.
General
Built in Switch
No
Package/Case
Metal
Current Rating
5mA
Detent
No
Encoder Type
Optical
Lead Free
Lead Free
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Chassis Mount
Number of Channels
2
Operating Supply Voltage
5V
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
25
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HEDS
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Broadcom HEDS-5500#A02 Datasheet
Download the complete datasheet for Broadcom HEDS-5500#A02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

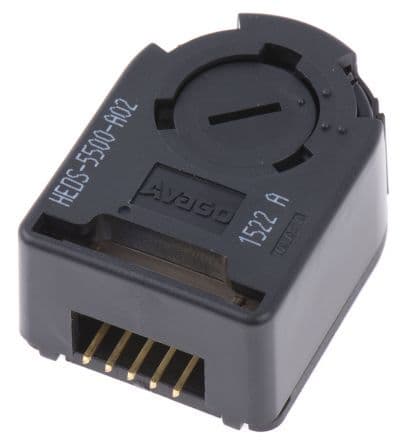

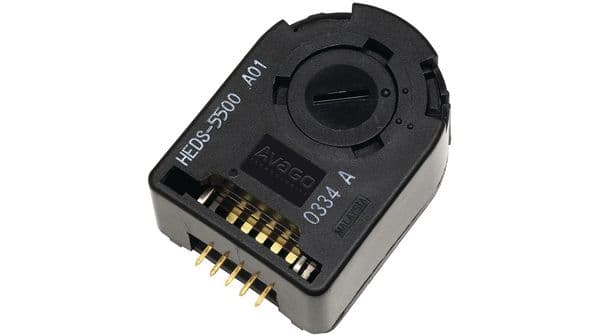

Product Images
