Fiber optic transceiver for Ethernet applications, featuring an 820nm wavelength and 160MBd data rate. This through-hole mount component offers a 5.25V operating supply voltage, 100mA forward current, and a 3.08ns fall time. Encased in metal, it operates within a -40°C to 85°C temperature range and has a capacitance of 55pF.
PackageMetal
Capacitance55pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1414MZ technical specifications.
General
| Application(s) | ETHERNET |
| Capacitance | 55pF |
| Package/Case | Metal |
| Fall Time | 3.08ns |
| Forward Current | 100mA |
| Height | 10.2mm |
| Length | 27.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Reverse Voltage (DC) | 1.8V |
| Mount | Through Hole |
| Operating Supply Voltage | 5.25V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 3.8V |
| RoHS Compliant | Yes |
| Wavelength | 820nm |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-1414MZ Datasheet
Download the complete datasheet for Broadcom HFBR-1414MZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

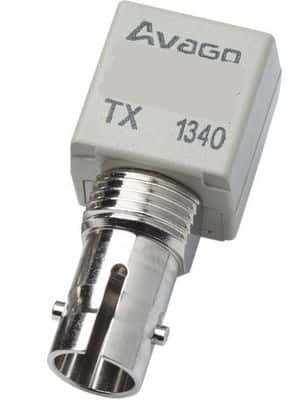

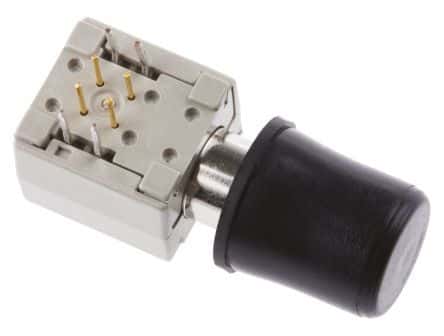

Product Images
