Fiber optic transceiver operating at 820nm wavelength with a data rate of 115Kbps. Features a 5V operating supply voltage and a maximum forward current of 100mA. Designed for 62.5/125 µm fiber size with a sensing distance of 2.7km. This through-hole mount component has a fall time of 6.5ns and a capacitance of 55pF. Operating temperature range is -40°C to 85°C, and it is RoHS compliant.
Capacitance55pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1414TZ technical specifications.
General
| Capacitance | 55pF |
| Data Rate | 115Kbps |
| Fall Time | 6.5ns |
| Fiber Size | 62.5/125 µm µm |
| Forward Current | 100mA |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Length | 27.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 1.8V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 3.8V |
| Reverse Voltage (DC) | 3.8V |
| RoHS Compliant | Yes |
| Sensing Distance | 2.7km |
| Wavelength | 820nm |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-1414TZ Datasheet
Download the complete datasheet for Broadcom HFBR-1414TZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

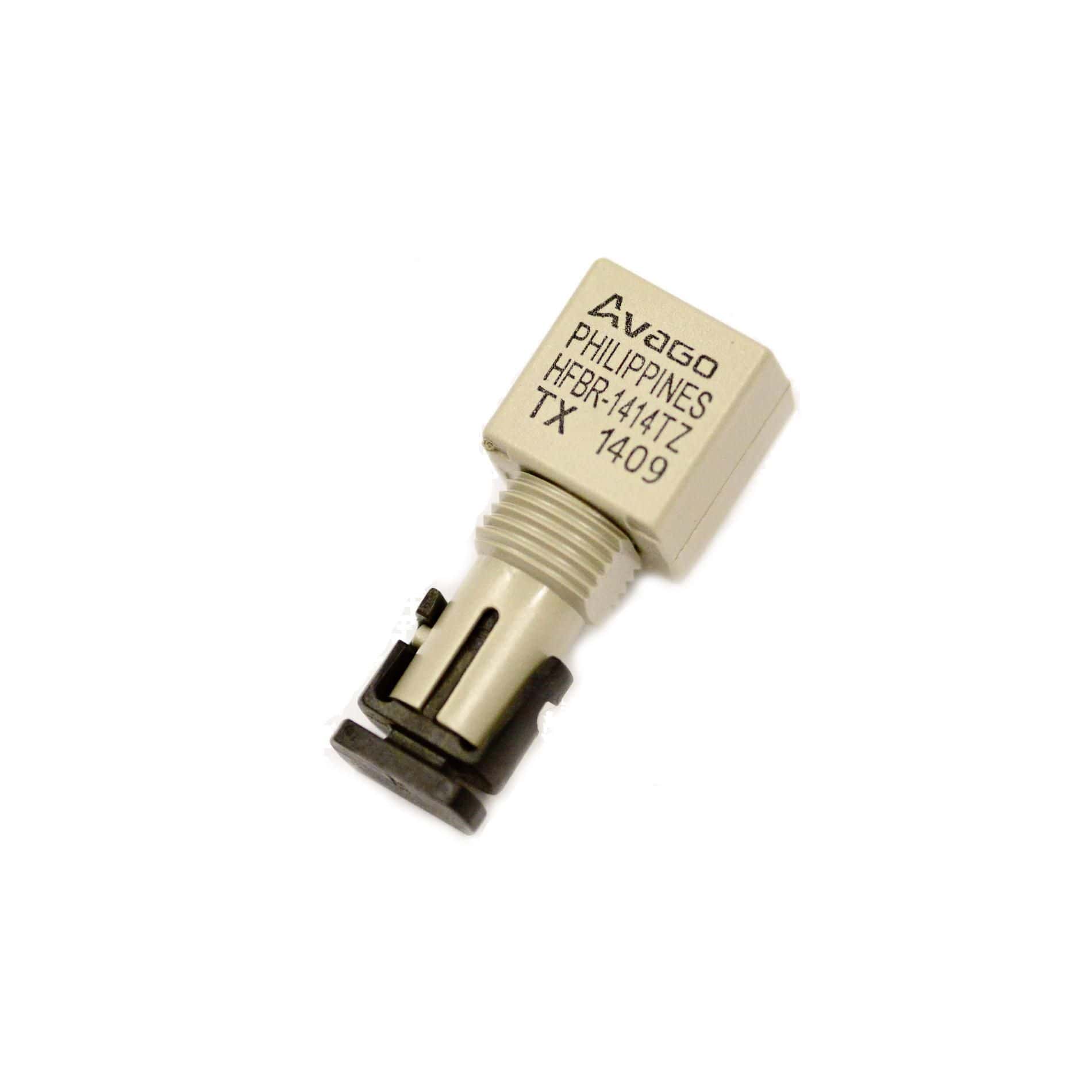

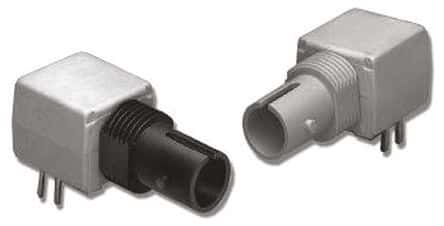

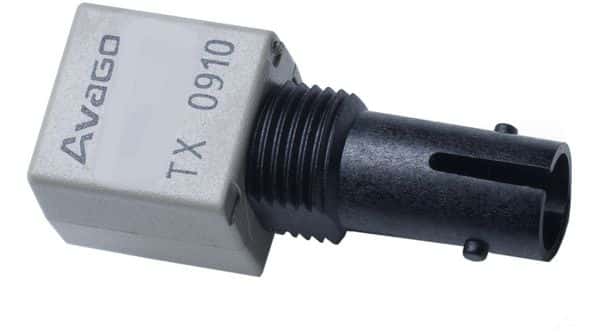

Product Images
