Fiber optic transmitter featuring a 820nm wavelength, operating at 160Mbps. This through-hole mount component offers a 5V operating supply voltage and a 100mA forward current. It supports a temperature range from -40°C to 85°C and is RoHS compliant.
PackageSMA
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1424Z technical specifications.
General
Package/Case
SMA
Forward Current
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
25mA
Max Reverse Voltage (DC)
3.8V
Mount
Through Hole
Operating Supply Voltage
5V
Package Quantity
60
Packaging
Rail/Tube
Reach SVHC Compliant
No
Reverse Voltage (DC)
3.8V
RoHS Compliant
Yes
Wavelength
820nm
Compliance
RoHS
Compliant
Datasheet
Broadcom HFBR-1424Z Datasheet
Download the complete datasheet for Broadcom HFBR-1424Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

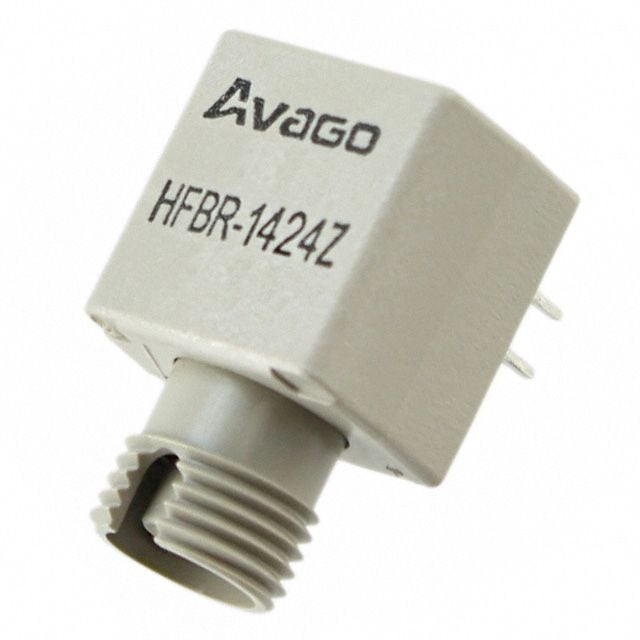

Product Images
