The HFBR-1505CZ is a 60pF transceiver with a data rate of 5Mbps, operating from a 5V supply voltage. It can handle a maximum forward current of 60mA and has a maximum operating temperature of 85°C. The device is packaged in a PDIP package and is mounted through a hole. It is RoHS compliant and has a wavelength of 650nm.
PackagePDIP
Capacitance60pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1505CZ technical specifications.
General
| Capacitance | 60pF |
| Package/Case | PDIP |
| Data Rate | 5Mbps |
| Forward Current | 60mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 3V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 3V |
| RoHS Compliant | Yes |
| Spectral Bandwidth | 21nm |
| Wavelength | 650nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-1505CZ Datasheet
Download the complete datasheet for Broadcom HFBR-1505CZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

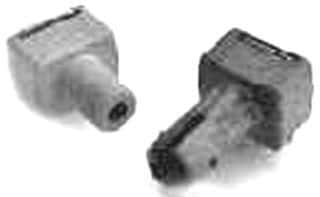

Product Images
