Fiber optic transceiver with 16Mbps data rate, operating at 650nm wavelength with a 21nm spectral bandwidth. Features a 60mA forward current, 15ns fall time, and 60pF capacitance. This 8-pin DIP package component supports through-hole mounting and operates within a 5V supply voltage range, from -40°C to 85°C. It is RoHS compliant and lead-free.
PackageDIP
Capacitance60pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1506AMZ technical specifications.
General
| Capacitance | 60pF |
| Package/Case | DIP |
| Data Rate | 16Mbps |
| Fall Time | 15ns |
| Forward Current | 60mA |
| Height | 11.2mm |
| Lead Free | Lead Free |
| Length | 16.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 3V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | -500mV |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 3V |
| RoHS Compliant | Yes |
| Spectral Bandwidth | 21nm |
| Wavelength | 650nm |
| Width | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-1506AMZ Datasheet
Download the complete datasheet for Broadcom HFBR-1506AMZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

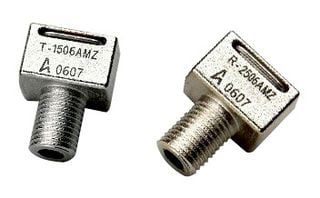

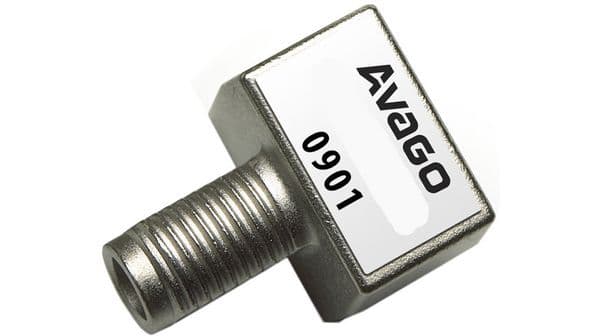

Product Images
