Automotive 4-pin optical fiber transceiver operating at 660nm with a data rate of 115Kbps. Features a forward current of 1A, max output current of 5.1mA, and a capacitance of 86pF. Designed for 62.5/125 µm fiber, this through-hole mount component operates from -40°C to 85°C. RoHS compliant with a 5V operating supply voltage.
Capacitance86pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1521Z technical specifications.
General
Capacitance
86pF
Data Rate
115Kbps
Fall Time
40ns
Fiber Size
62.5/125 µm µm
Forward Current
1A
Height
7.6mm
Lead Free
Lead Free
Length
18.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5.1mA
Max Reverse Voltage (DC)
5V
Mount
Through Hole
Operating Supply Voltage
5V
Operating Wavelength-Nom
660nm
Package Quantity
200
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage (DC)
5V
RoHS Compliant
Yes
Supply Voltage-Nom
7V
Wavelength
660nm
Width
12.2mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HFBR-1521Z Datasheet
Download the complete datasheet for Broadcom HFBR-1521Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

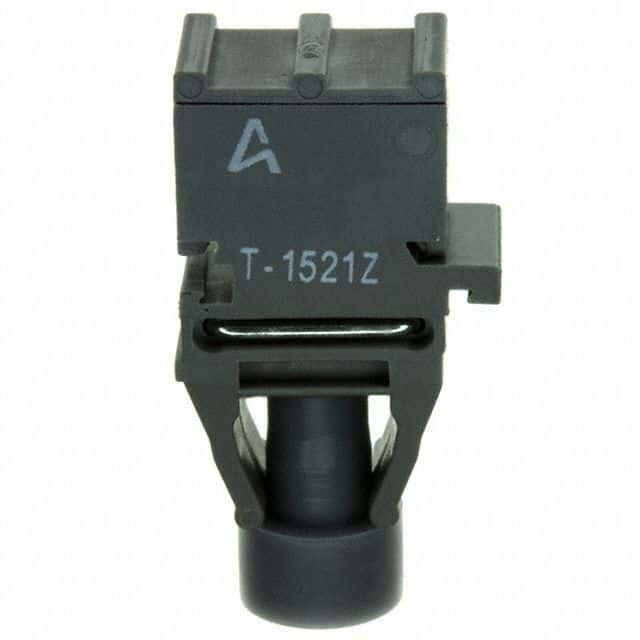

Product Images
