Automotive fiber optic transceiver operating at 660nm with a 495Mbps data rate. Features include 86pF capacitance, 40ns fall time, and 80mA forward current. Designed for 62.5/125 µm fiber, this through-hole mount component operates from -40°C to 85°C with a 5V supply voltage. RoHS compliant and lead-free.
Capacitance86pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1522Z technical specifications.
General
| Capacitance | 86pF |
| Data Rate | 495Mbps |
| Fall Time | 40ns |
| Fiber Size | 62.5/125 µm µm |
| Forward Current | 80mA |
| Height | 7.62mm |
| Lead Free | Lead Free |
| Length | 18.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Operating Wavelength-Nom | 660nm |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 11V |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5V |
| Wavelength | 660nm |
| Width | 12.19mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-1522Z Datasheet
Download the complete datasheet for Broadcom HFBR-1522Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

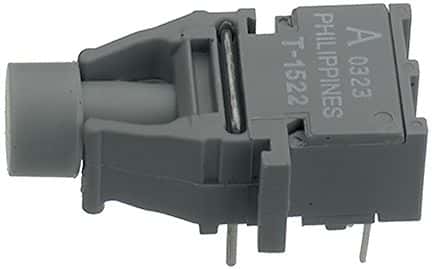

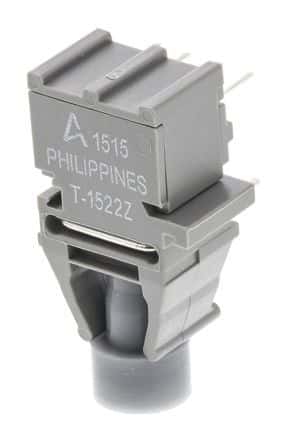

Product Images
