Automotive optical fiber transceiver operating at 660nm wavelength with a 5MBd data rate. Features a 115Kbps data rate, 40ns fall time, and supports 62.5/125 µm fiber size. Designed for through-hole mounting with a 5V operating supply voltage and a maximum operating temperature of 85°C. Includes 80mA forward current, 5.1mA max output current, and 5V reverse voltage.
Capacitance86pF
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-1531Z technical specifications.
General
| Capacitance | 86pF |
| Data Rate | 115Kbps |
| Fall Time | 40ns |
| Fiber Size | 62.5/125 µm µm |
| Forward Current | 80mA |
| Height | 18.8mm |
| Lead Free | Lead Free |
| Length | 18.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5.1mA |
| Max Reverse Voltage (DC) | 5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Operating Wavelength-Nom | 600nm |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
| Sensing Distance | 20m |
| Supply Voltage-Nom | 1.67V |
| Wavelength | 660nm |
| Width | 12.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-1531Z Datasheet
Download the complete datasheet for Broadcom HFBR-1531Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

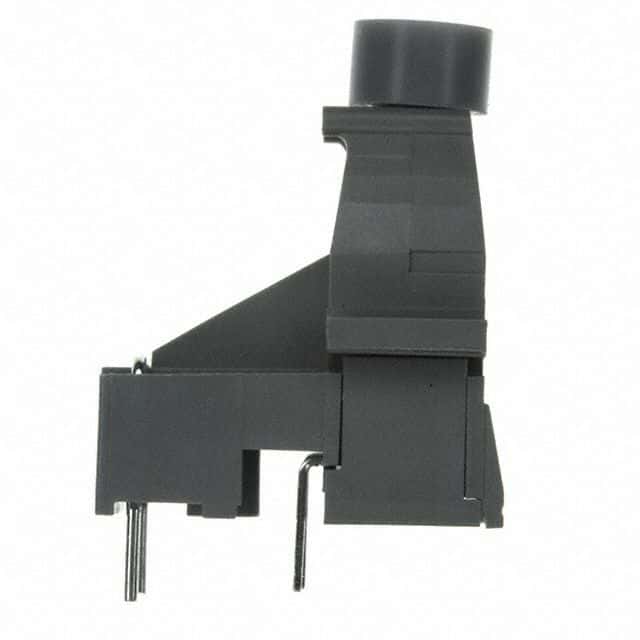

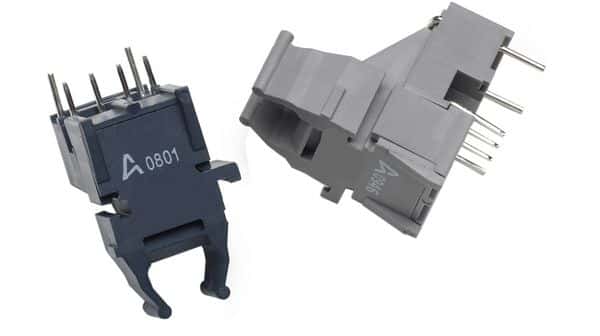

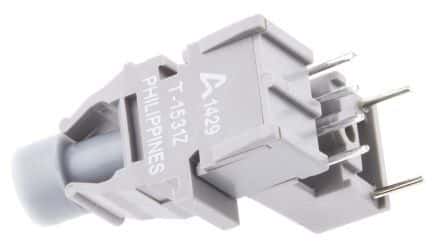

Product Images
