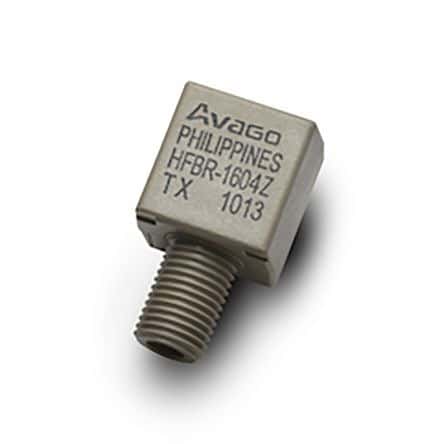

The HFBR-1604Z is a 5V optical transmitter with a forward current of 60mA. It features a SMA package and operates within a temperature range of -40°C to 85°C. The device is RoHS compliant and has a maximum reverse voltage of 5V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HFBR-1604Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 30pF |
| Package/Case | SMA |
| Fall Time | 40ns |
| Forward Current | 60mA |
| Height | 10.2mm |
| Length | 27.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Voltage (DC) | 5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | -18V |
| RoHS Compliant | Yes |
| Spectral Bandwidth | 20nm |
| Wavelength | 655nm |
| Width | 12.7mm |
| RoHS | Compliant |
