Through-hole mount fiber optic transceiver operating at 820nm with a data rate of 115Kbps. Features a 5V nominal supply voltage, drawing 10mA operating current and capable of 25mA output current. Designed for a wide temperature range from -40°C to 85°C. Packaged in a rail/tube for 60 units.
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-2412Z technical specifications.
General
| Data Rate | 115Kbps |
| Height | 10.2mm |
| Length | 27.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Voltage | 7V |
| Min Supply Voltage | -500mV |
| Mount | Through Hole |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 5V |
| Operating Wavelength-Nom | 820nm |
| Output Current | 25mA |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5V |
| Wavelength | 820nm |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-2412Z Datasheet
Download the complete datasheet for Broadcom HFBR-2412Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

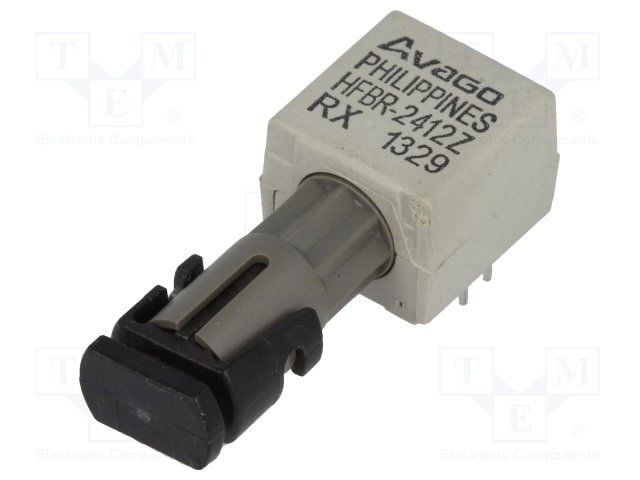

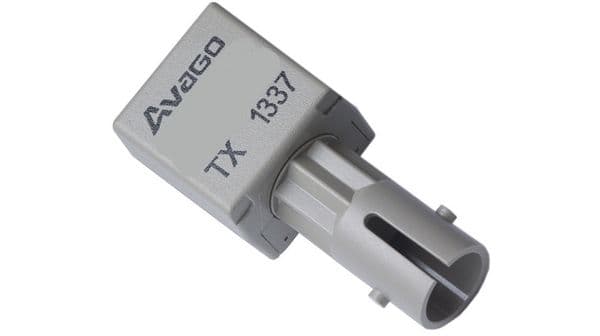

Product Images
