Optical transceiver featuring an 8-pin metal package for through-hole mounting. Operates at a data rate of 0.16Gbps with a wavelength of 820nm. This lead-free component functions within an operating temperature range of -40°C to 85°C and requires a supply voltage of 5V, with a tolerance of 4.75V to 5.25V. Typical operating supply current is 6.2mA.
PackageMetal
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-2416MZ technical specifications.
General
Package/Case
Metal
Data Rate
0.16Gbps
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Operating Supply Current
6.2mA
Operating Supply Voltage
5V
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HFBR-24xxZ
Wavelength
820nm
Compliance
RoHS
Compliant
Datasheet
Broadcom HFBR-2416MZ Datasheet
Download the complete datasheet for Broadcom HFBR-2416MZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

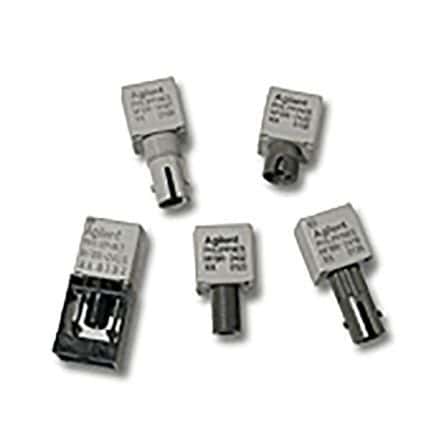

Product Images
