Fiber optic transceiver module featuring an 820nm wavelength and a data rate of 115Kbps. This through-hole mounted component operates within a supply voltage range of 4.75V to 5.25V, with a typical operating voltage of 5V and a maximum output current of 25mA. It boasts a fall time of 6.3ns and is RoHS compliant, designed for operation between -40°C and 85°C. The module is packaged in a rail/tube format.
PackageModule
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HFBR-2416TZ technical specifications.
General
| Package/Case | Module |
| Data Rate | 115Kbps |
| Fall Time | 6.3ns |
| Height | 10.2mm |
| Lead Free | Lead Free |
| Length | 27.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Operating Supply Current | 100mA |
| Operating Supply Voltage | 5V |
| Output Current | 25mA |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Wavelength | 820nm |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-2416TZ Datasheet
Download the complete datasheet for Broadcom HFBR-2416TZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

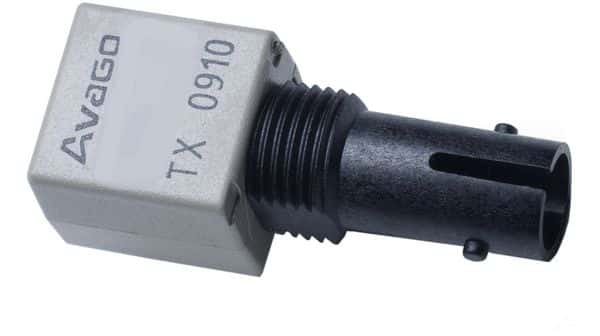

Product Images
