Plastic, black, free-hanging, cable-mount fiber optic connector for simplex, singlemode applications. Features a 1000µm fiber cladding diameter and 2.22mm insulation diameter, with a straight orientation. Operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Broadcom HFBR-4531Z technical specifications.
General
| Body Material | Plastic |
| Color | Black |
| Depth | 9.39mm |
| Fiber Cladding Diameter | 1000um |
| Housing Color | Black |
| Insulation Diameter | 2.22mm |
| Lead Free | Lead Free |
| Length | 29.97mm |
| Material | Plastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mode | Singlemode |
| Mount | Free Hanging, Cable |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Port Type | SIMPLEX |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HFBR |
| Simplex/Duplex | Simplex |
| Wire/Cable Diameter | 2.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HFBR-4531Z Datasheet
Download the complete datasheet for Broadcom HFBR-4531Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

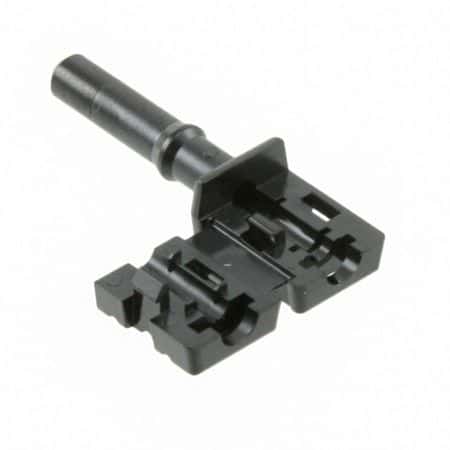

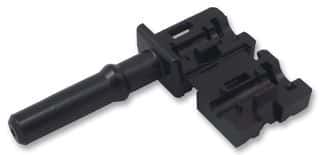

Product Images
