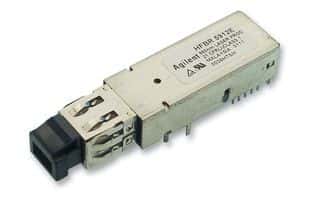

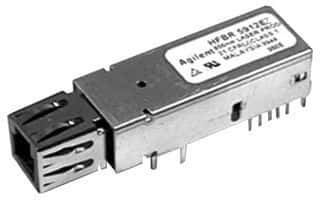

The HFBR-5912EZ is a 1Gbps fiber optic transmitter from Broadcom, designed for use in Ethernet applications. It operates within a temperature range of 0°C to 70°C and is compliant with RoHS regulations. The device is available in a tray packaging format with 10 units per package. It is not radiation hardened and is not compliant with Reach SVHC regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HFBR-5912EZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Application(s) | ETHERNET |
| Data Rate | 1Gbps |
| Fall Time | 0.26ns |
| Height | 9.8mm |
| Lead Free | Lead Free |
| Length | 48.57mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 30mA |
| Max Supply Voltage | 3.47V |
| Min Supply Voltage | 3.14V |
| Mount | Through Hole, Surface Mount, Panel |
| Operating Supply Voltage | 3.3V |
| Output Current | 30mA |
| Package Quantity | 10 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HFBR |
| Wavelength | 850nm |
| Width | 13.59mm |
| RoHS | Compliant |
