Uni-color red LED light bar featuring 10 elements, each emitting light at 645nm. This through-hole mounted component offers a forward current of 20mA and a typical current of 15mA, with a forward voltage rating of 1.6V. The rectangular lens style provides a luminous intensity of 5.2mcd. Operating within a temperature range of -20°C to 100°C, this RoHS compliant component has a power dissipation of 37mW and a reverse voltage of 5V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HLCP-J100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Red |
| Current | 15mA |

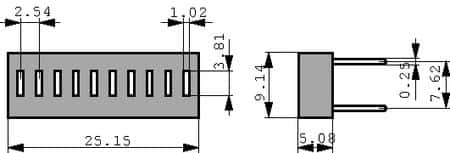

| Depth | 10.16mm |
| Forward Current | 20mA |
| Height | 10.16mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 25.4mm |
| Lens Style | Rectangular |
| Luminous Intensity | 5.2mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, Radial |
| Number of Elements | 10 |
| Number of LEDs | 10 |
| Number of Segments | 10 |
| Package Quantity | 120 |
| Packaging | Tray |
| Power Dissipation | 37mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Shape | Rectangular |
| Voltage Rating | 1.6V |
| Width | 10.16mm |
| RoHS | Compliant |
