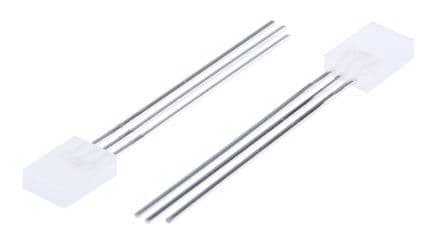

Dual color LED emitter featuring high efficiency red and green illumination. This through-hole component offers a diffused, rectangular lens with a 100° viewing angle. Operates with a 30mA forward current and 5V reverse voltage, delivering 2.1mcd luminous intensity. Packaged in a plastic radial package with 25mm lead length, it is RoHS compliant and operates from -20°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HLMP-0800 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Color | Green, Red |
| Depth | 2.23mm |
| Forward Current | 30mA |
| Height | 8mm |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Lead Length | 25mm |
| Length | 5.18mm |
| Lens Color | White |
| Lens Style | Rectangular, Diffused |
| Lens Transparency | Diffused |
| Luminous Intensity | 2.1mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole, Radial |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Power Dissipation | 135mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Shape | Rectangular |
| Viewing Angle | 100° |
| Wavelength | 570nm |
| Width | 2mm |
| RoHS | Compliant |
