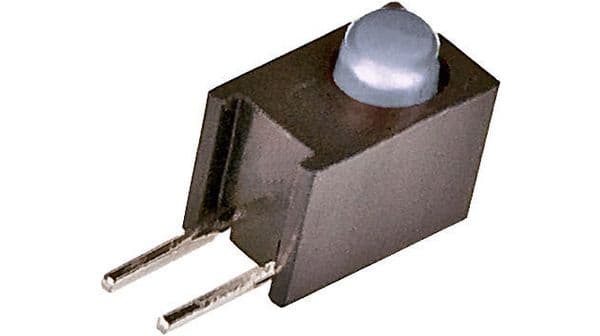

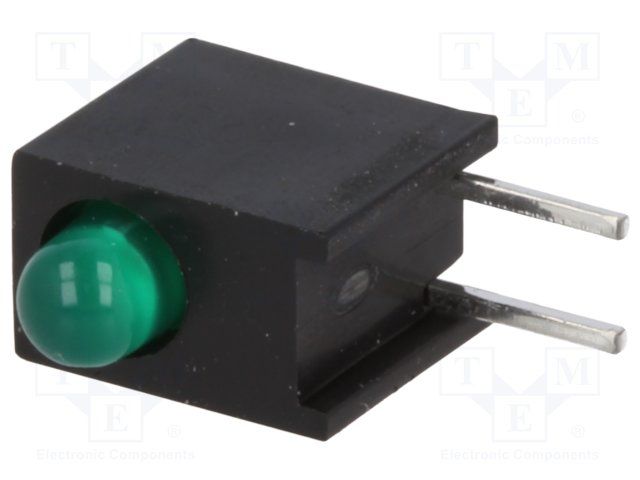

Green diffused T-1 (3mm) LED emitter with a 2.1V forward voltage and 10mA typical forward current, capable of up to 30mA. Features a 565nm wavelength and 2.6mcd luminous intensity with a 60° viewing angle. Operates from -20°C to 100°C and is lead-free and RoHS compliant. Through-hole mounting in a plastic package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HLMP-1503-C00A2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom HLMP-1503-C00A2 technical specifications.
| Package/Case | T |
| Color | Green |
| Current | 10mA |
| Depth | 3.43mm |
| Diameter | 3mm |
| Forward Current | 30mA |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 3.43mm |
| Lens Style | Diffused, Tinted, Dome, Round, Colored, Circular |
| Luminous Intensity | 2.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | HLMP-1503 |
| Viewing Angle | 60° |
| Voltage Rating | 2.1V |
| Wavelength | 565nm |
| RoHS | Compliant |
