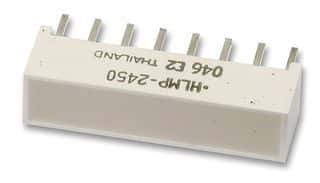

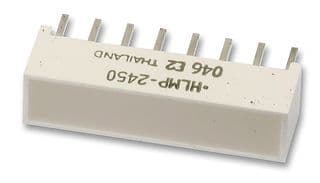

Uni-color yellow LED light bar, featuring four individual LEDs within a diffused, rectangular lens. This 8-pin SIP package mounts through-hole and operates with a forward current of 20mA, a typical luminous intensity of 38mcd, and a voltage rating of 2.1V. Designed for reliable indication, it offers a wide operating temperature range from -40°C to 85°C and is RoHS compliant.
PackageSIP
Current25mA
Voltage Rating2.1V
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-2450 technical specifications.
General
| Package/Case | SIP |
| Color | Yellow |
| Current | 25mA |
| Depth | 4.95mm |
| Forward Current | 20mA |
| Height | 6.22mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Length | 20.32mm |
| Lens Style | Diffused, Rectangular |
| Luminous Intensity | 38mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Elements | 1 |
| Number of LEDs | 4 |
| Number of Segments | 1 |
| Package Quantity | 160 |
| Packaging | Rail/Tube |
| Power Dissipation | 85mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Series | HLMP-2450 |
| Voltage Rating | 2.1V |
| Width | 4.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-2450 Datasheet
Download the complete datasheet for Broadcom HLMP-2450 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
